R215L

by SMART Plus

259


Thumbnail 1Thumbnail 2Thumbnail 3
Product

About this item

R215L SMART PLUS is part of Hyundai's Mining Crawler Excavator, designed to deliver excellent productivity in the toughest mining terrains. The Crawler Excavator is equipped with features such as high performing Cummins Engine, Advanced CAPO system, hydraulic flow summation, energy regeneration system and excellent digging forces at best poclain price. This earthmoving equipment provides superior performance at low cost of operation.





Specifications

Equipment

UNIT

R215L SMART

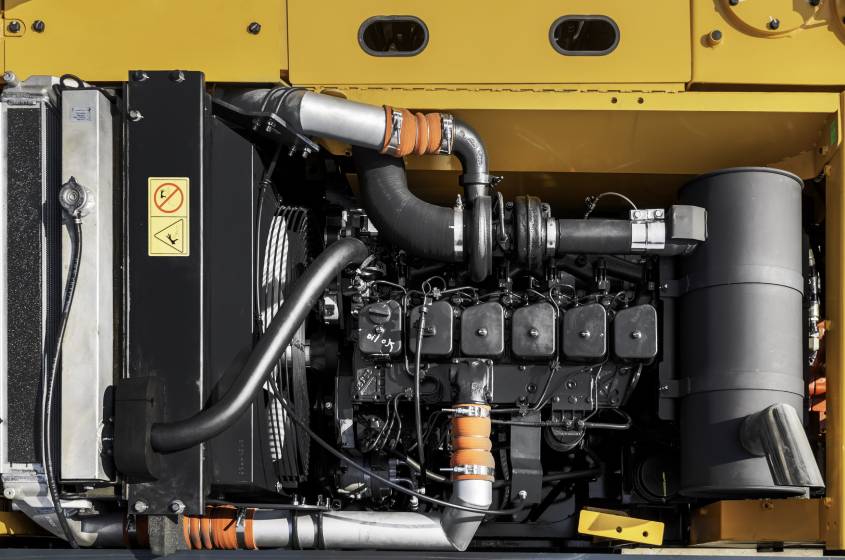

Engine Model

Cummins 6BTAA-5.9C

Gross Power

hp @ rpm

148 @ 2000

Operating Weight

Kgs

22200

Bucket Range

Cu.M

0.87 - 1.7

Swing speed

rpm

11

Travel speed, high/ low

km/hr

5.3/ 3.4

Max. digging reach on ground

mm

9300

Max. digging Depth

mm

6050

Tail swing radius

mm

2830

Bucket digging force

kgf.

15600

Arm crowd force

kgf.

12500

Bucket Capacity

Cu.M

1.05GP/ 0.95HD/ 0.87RB/ 1.2 GP/ 1.7 Coal
