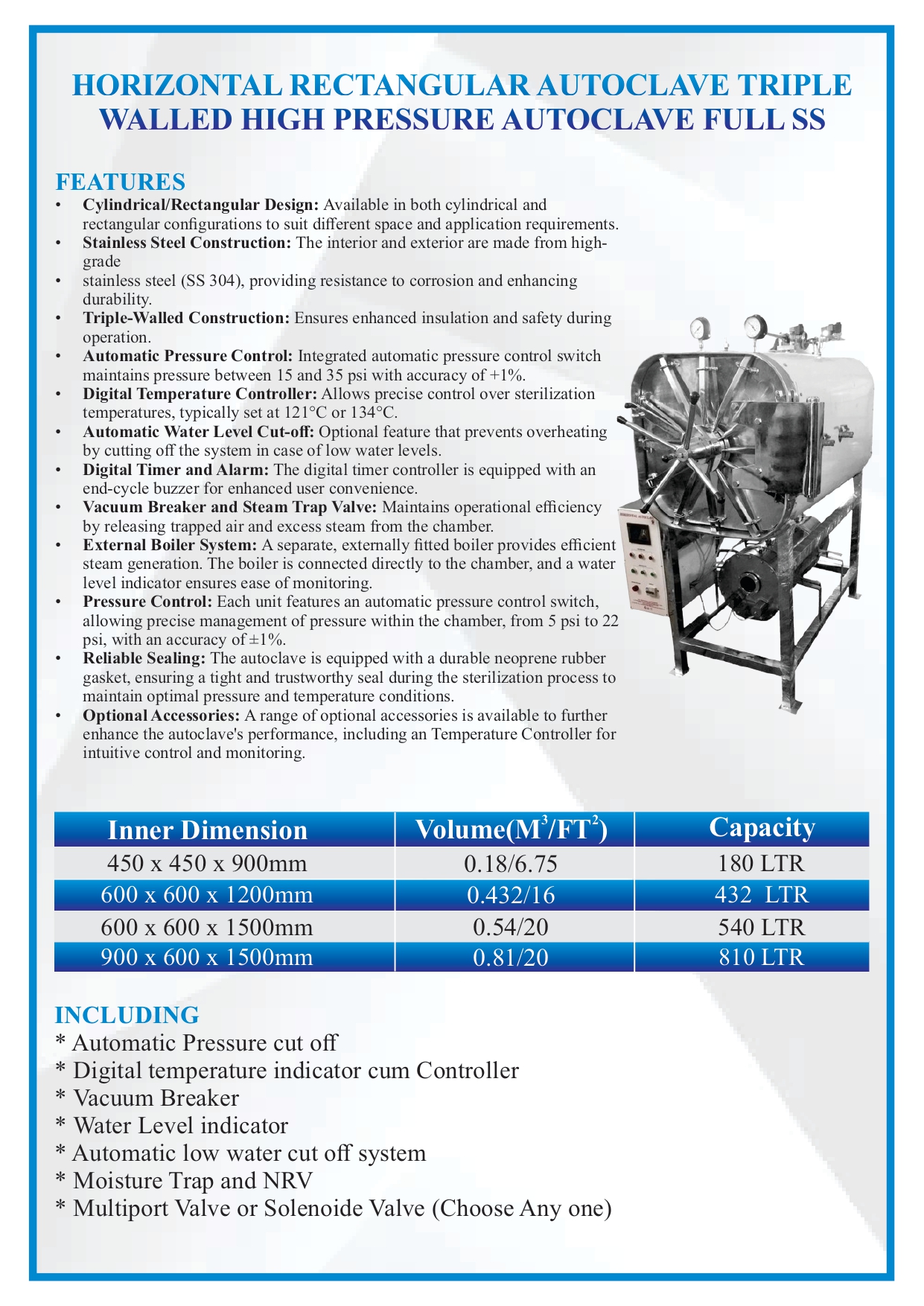

HIGH PRESSURE AUTOCLAVE FULL SS

• Automatic Water Level Cut-off: Optional feature that prevents overheating by cutting off the system in case of low water levels.

• Digital Timer and Alarm: The digital timer controller is equipped with an end-cycle buzzer for enhanced user convenience.

• Vacuum Breaker and Steam Trap Valve: Maintains operational efficiency by releasing trapped air and excess steam from the chamber.

• External Boiler System: A separate, externally fitted boiler provides efficient steam generation. The boiler is connected directly to the chamber, and a water level indicator ensures ease of monitoring.

• Pressure Control: Each unit features an automatic pressure control switch, allowing precise management of pressure within the chamber, from 5 psi to 22 psi, with an accuracy of ±1%.

• Reliable Sealing: The autoclave is equipped with a durable neoprene rubber gasket, ensuring a tight and trustworthy seal during the sterilization process to maintain optimal pressure and temperature conditions.

• Optional Accessories: A range of optional accessories is available to further enhance the autoclave’s performance, including a Temperature Controller for intuitive control and monitoring.

• Specifications

  Inner Dimension	Volume (M³/FT²)	Capacity
  450 × 450 × 900 mm	0.18 / 6.75	180 LTR
  600 × 600 × 1200 mm	0.432 / 16	432 LTR
  600 × 600 × 1500 mm	0.54 / 20	540 LTR
  900 × 600 × 1500 mm	0.81 / 20	810 LTR
